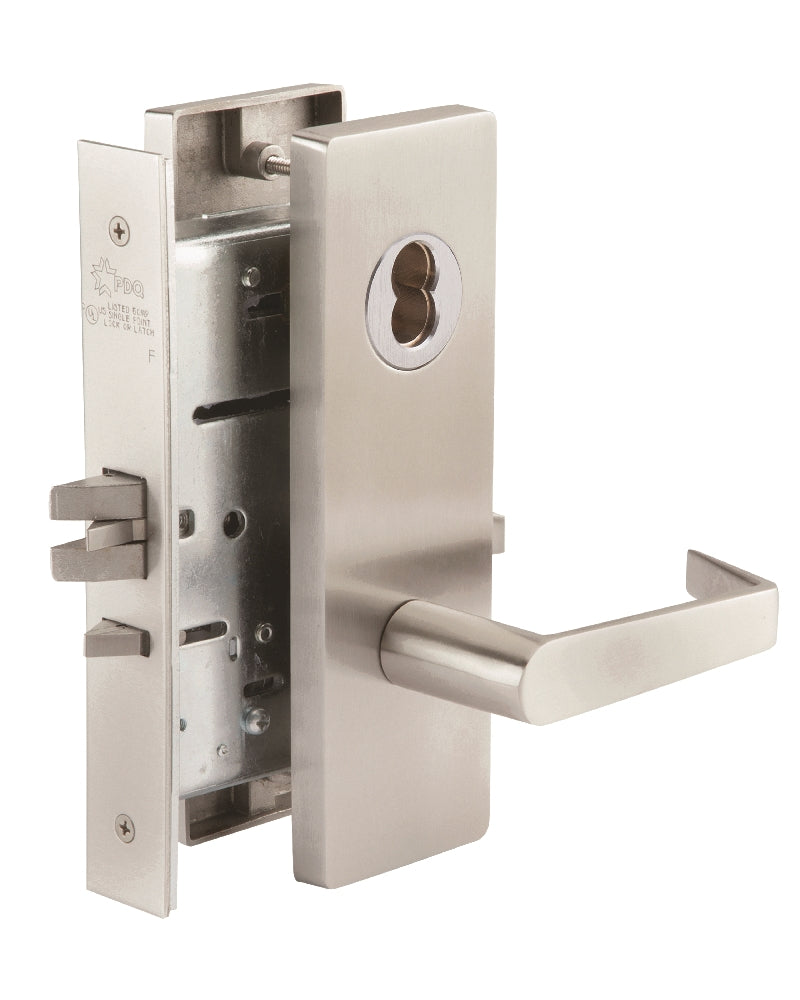

MR series mortise locksets exceed industry standards, offering durability, security and ANSI/BHMA Grade 1 extra-heavy-duty certification. Grade 1-Mortise Lockset, F22-Privacy function, MR 176 Series, Philadelphia lever style, 5-7/8" H x 7/8" D x 4-1/16" W case size, 2-3/4" backset, Strike Type Dimensions 1-1/4" W x 4-1/8" L curved lip, SFIC 7-pin housing less core. Recommended Door Thickness 1-3/4". Limited lifetime warranty. Made in the U.S.A.
Product Details
| Packaged Dimensions | 9"L x 7"W x 4"H |
| Packaged Weight (lbs) | 8.66 |
| Restricted to Government Only | Yes |
| Returnable | Yes |
| UPC | 071503294234 |
Environmental Attributes
| Post-Consumer Recycled Content | 0% |
| Pre-Consumer Recycled Content | 0% |
| Total Recycled Content | 0% |
Essentially-The-Same (ETS) Commercial Products:
The following commercial products are equivalent to AbilityOne NSN 5340-00-NIB-0141. The federal government is prohibited from purchasing the below commercial products without a waiver approved by the AbilityOne Commission.
| Manufacturer | Commercial SKU (UPC) |
| PDQ | MR176PJEW |
| STANLEY | 45HLT626 |
